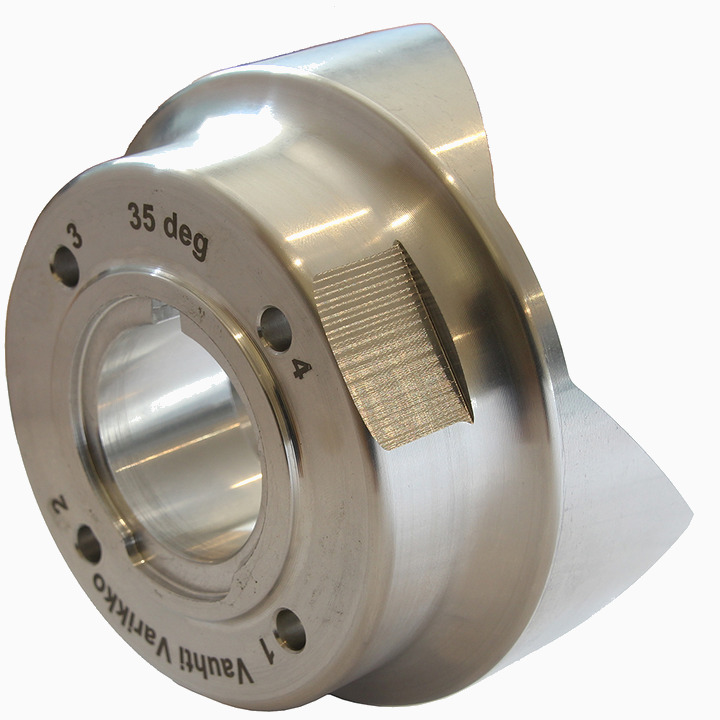

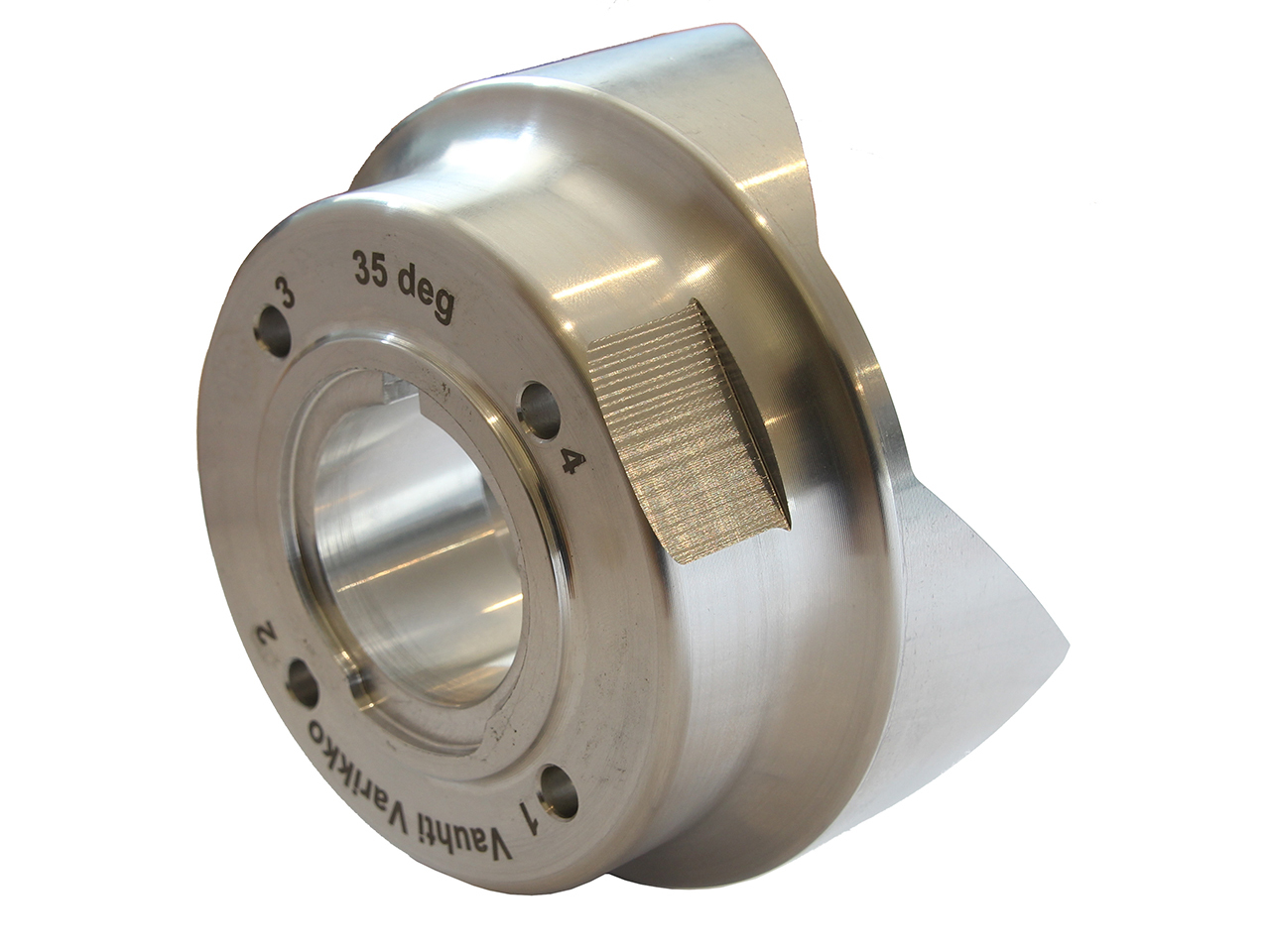

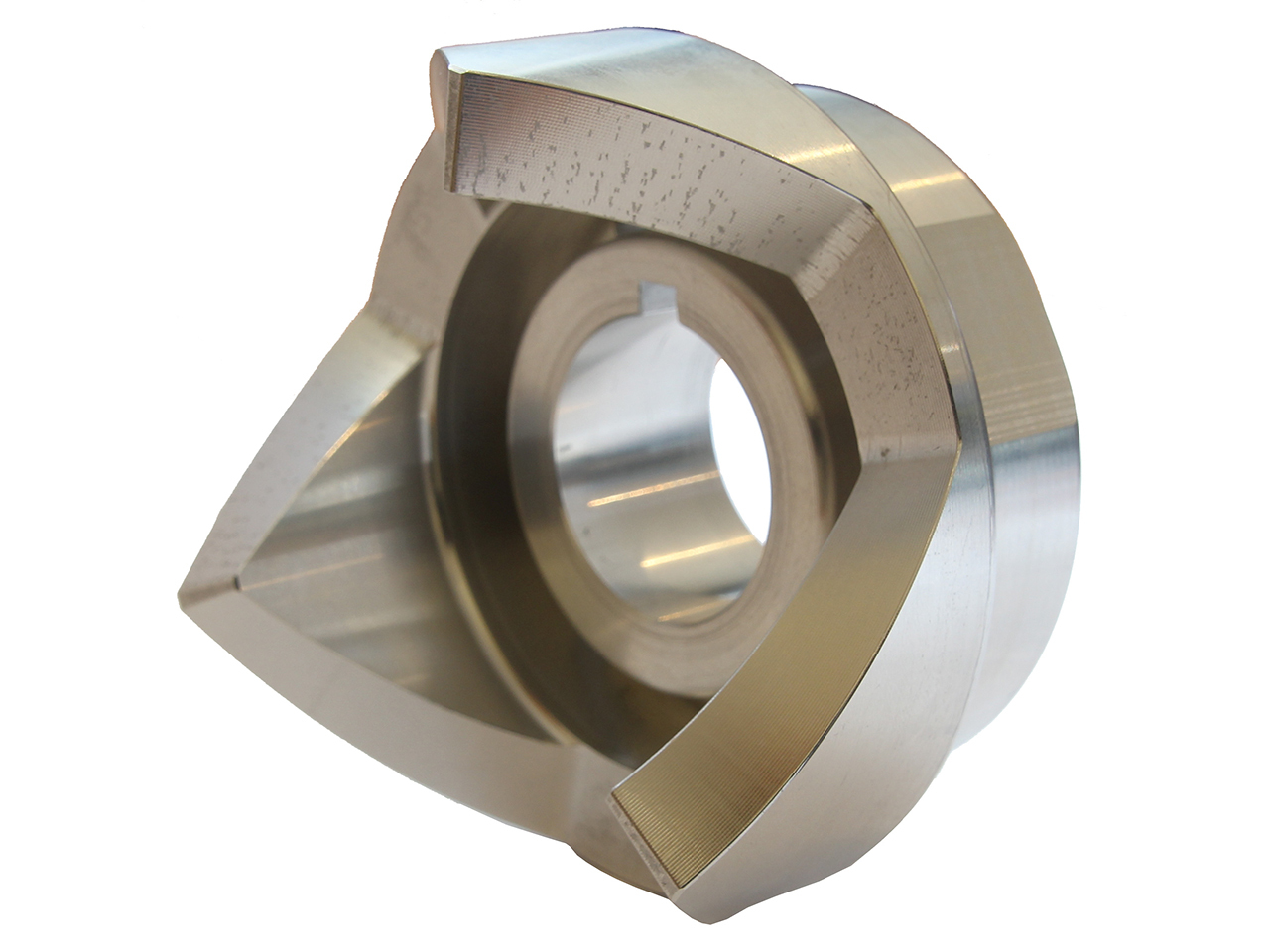

Secondary clutch helix 35

Secondary clutch helix (35 degree) to use with higher powered vehicles such as CFMOTO CFORCE 850 / 1000 and UFORCE 1000 with oversize / heavy 28"-32" tyres and clutch / variator upgrade kit installed with the CVTech LP3 Driven Clutch. Optimal power transmission when using large wheels or mud wheels.In the secondary clutch, a helix / spring combination is used to generate belt squeezing and up shifting forces. Helixes and secondary springs are calibrated to balance the pull from the belt created by engine torque plus the up shift force generated by the primary clutch at a point where the engine will shift out at a constant rpm.

• To use when larger / heavyweight tyres fitted on ATV
• Requires also stage 1 or stage 2 clutch / variator upgrade kit installarion for proper outcome
• Comes with installation / user manual
