Quadivator Elektro / Hüdrauliline tõstesilinder ( 87499 )

Manufacturer:  KYB
Model: MMP4 - B1B250BB - DHR
Capacity (force): 1800 lbs
Stroke: 250 mm
Weight: 5 kg
Gap in between mounting eyes: 380mm (min) - 630mm (max)
Cylinder arm diameter: 250 mm
Mounting eye diameter: Ø 5/8"
Power supply: 12V DC
Dimensions: L 420-670 mm W 80mm H 136mm
Packed dimensions: L 450 mm x W 100 mm x H 250mm

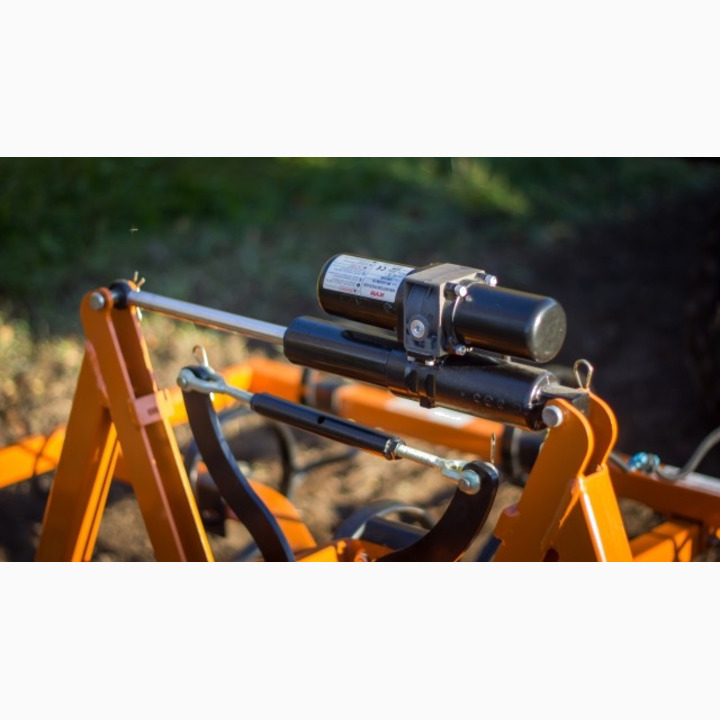

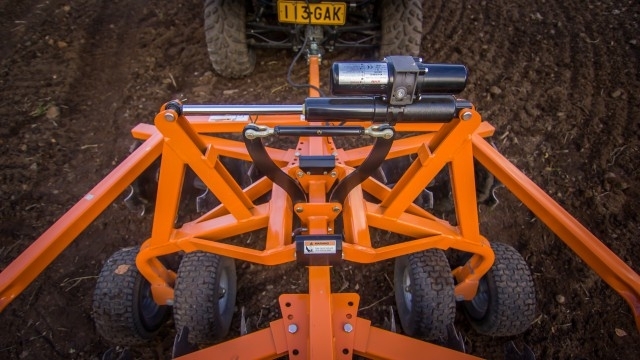

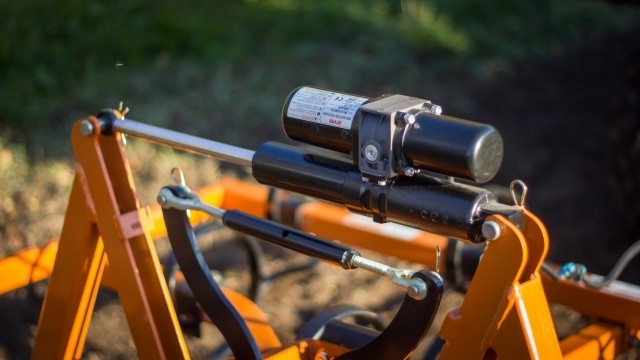

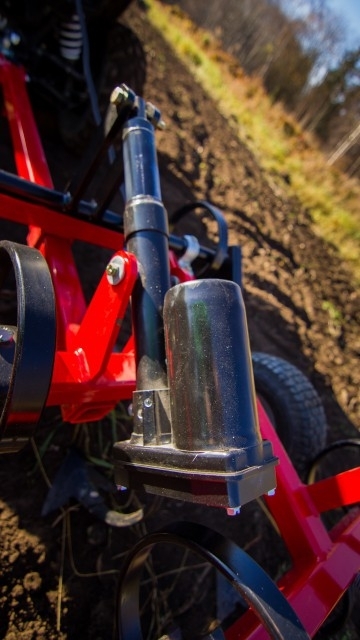

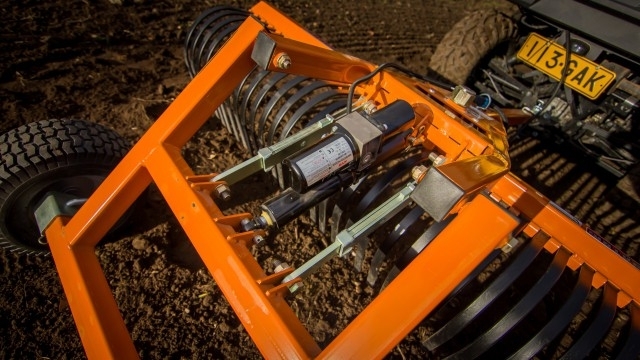

Electric / Hydraulic Actuator is required for the Quadivator UTV / ATV products.
It is easily interchangeable from one Quadivator product to another.
Electric power comes from the power source of the ATV.

Wiring harness & switch kit ( 89930A ) , part number 70.2000 required for installation.
One actuator fits all implements and can be moved from one to another easily.
